PT1000 Temperature sensor

About PT1000 Temperature sensor

A PT1000 is a platinum resistance temperature detector (RTD), where:

• "PT" stands for platinum (used as the sensing material),

• "1000" indicates the resistance of 1000 Ohms at 0C.

This sensor works based on the principle that the electrical resistance of platinum increases with temperature in a predictable way.

---

Key Characteristics:

How It Works:

• As temperature rises, the resistance of the platinum element increases.

• This resistance change is measured and converted into temperature using a calibration table or a conversion equation

Advantage: PT1000 sensors require less compensation for lead wire resistance, especially important in 2-wire and 3-wire configurations.

Common Applications:

• Industrial automation: Monitoring motor and transformer temperatures.

• HVAC systems: Air and water temperature control.

• Medical devices: High-accuracy patient and equipment monitoring.

• Automotive: Engine and battery thermal management.

• Consumer appliances: Ovens, washing machines, and HVAC units.

Configuration Types:

• 2-wire: Simplest but affected by lead wire resistance.

• 3-wire: Common in industrial setups to compensate for lead resistance.

• 4-wire: Most accurate, used in laboratories and calibration systems.

The PT1000 sensor is a precise, stable, and reliable temperature measurement device. It's ideal for applications requiring high accuracy and minimal impact from lead wire resistance. It is often chosen over PT100 for remote sensing in noisy environments due to its better signal-to-noise performance.

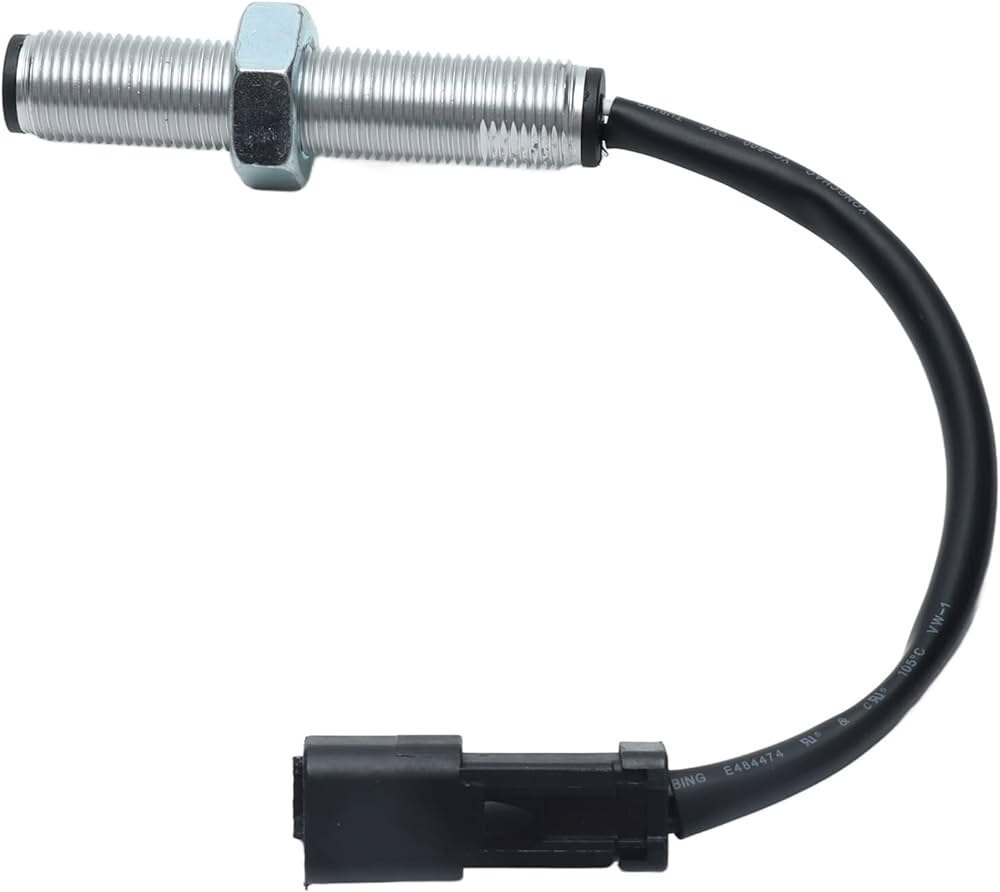

2 wire configuration is typically used in electrical motor winding temperature detection for industrial recreational and EVs. comes with 2 pole standard connector. special connectors can be supported as per the users request with actual price

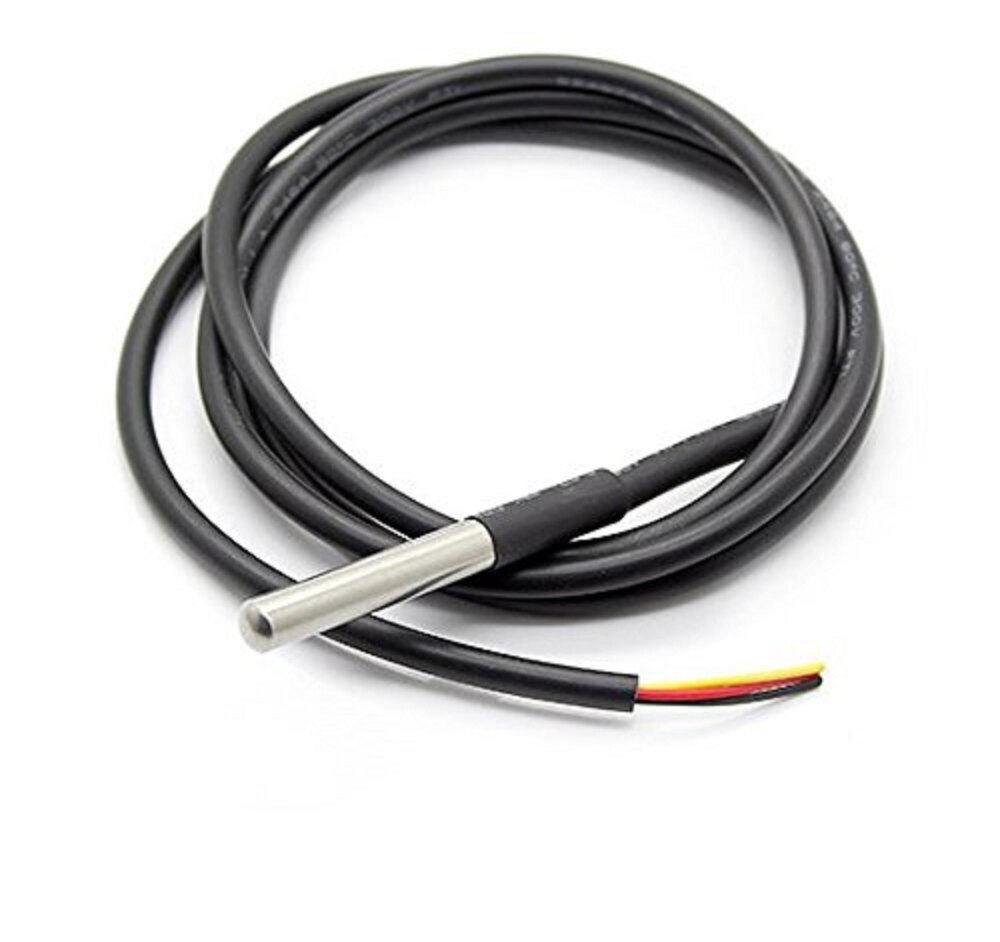

3 wire configuration is used to detect the temperature of transformer winding temperature measurement due to the compensation present in it. special connectors are available upon request.

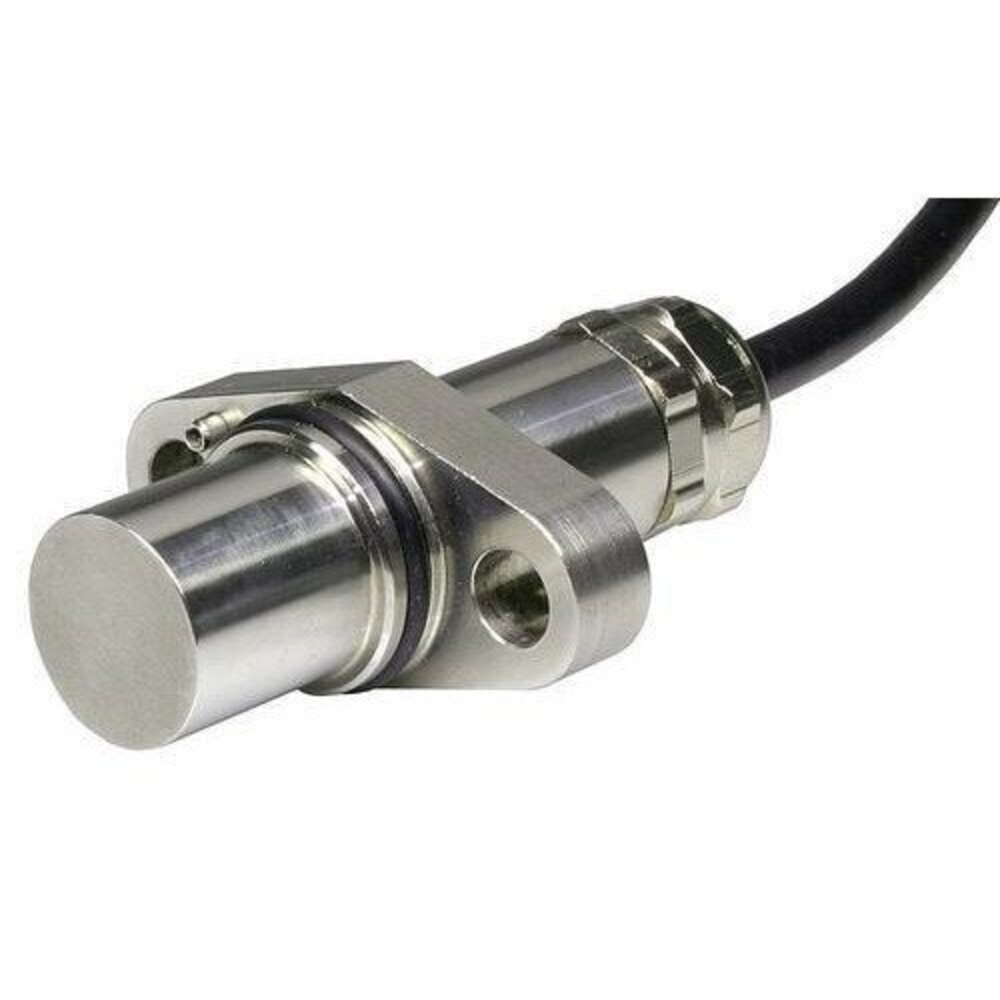

Durable Construction for Demanding Environments

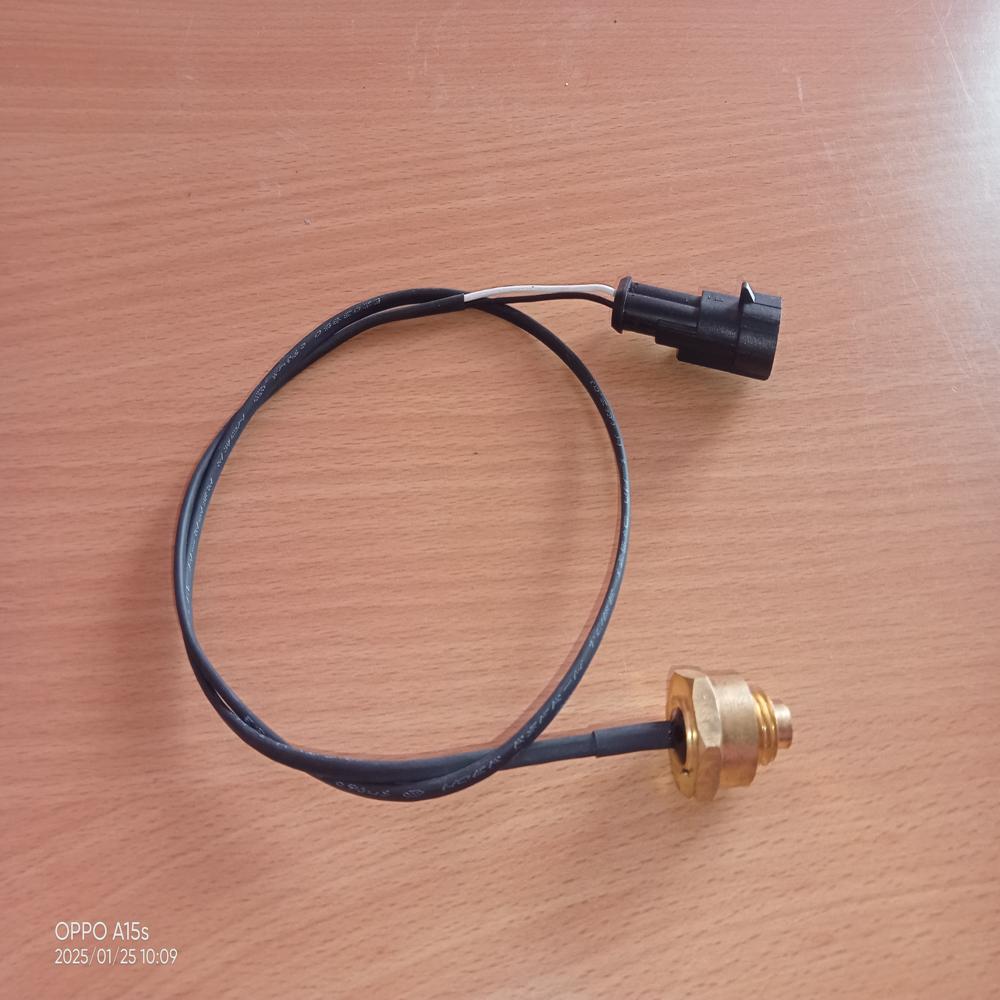

The PT1000 temperature sensor is built with a brass and plastic housing, ensuring high mechanical durability and resistance to vibration. Its IP65 protection provides long-term reliability in dusty or wet conditions, making it suitable for industrial automation, power plants, and machinery.


Fast and Accurate Temperature Sensing

Equipped with a Class B thin film platinum RTD, this sensor provides accurate temperature readings (0.3C at 0C) and a rapid response time of just 2 seconds in liquid. It measures temperatures from -50C to +250C, ideal for real-time monitoring and control.


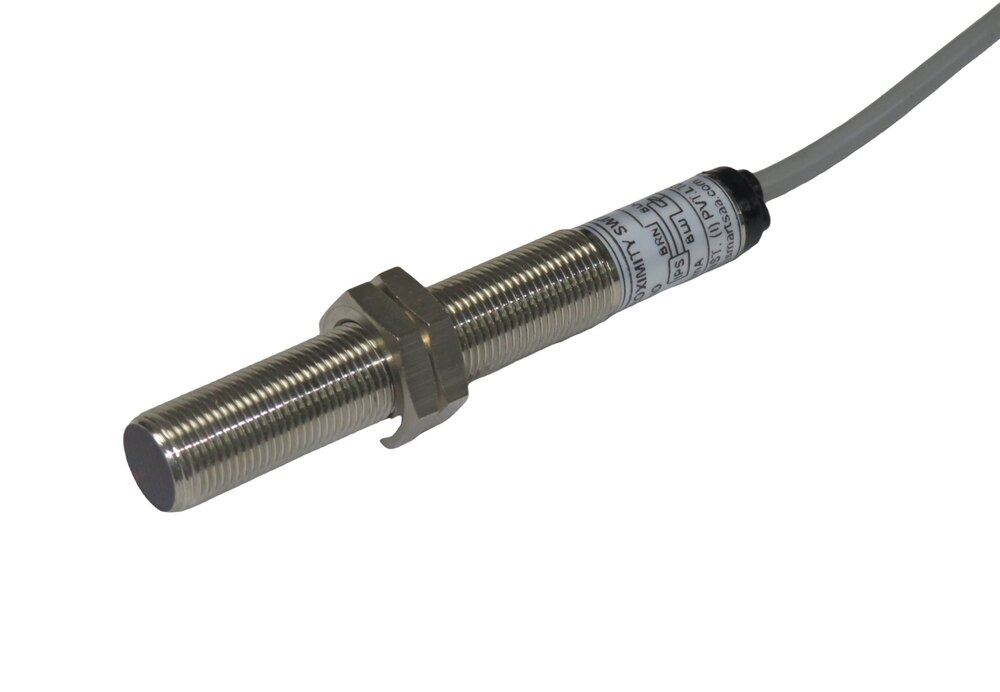

Easy Installation and Versatile Connectivity

Featuring a snap-in plug connector and threaded M10 mounting, the PT1000 sensor ensures simple integration into existing systems. The wired 2-wire or 3-wire interface, combined with a 1-meter PVC-insulated copper lead, allows flexible deployment in various industrial scenarios.
